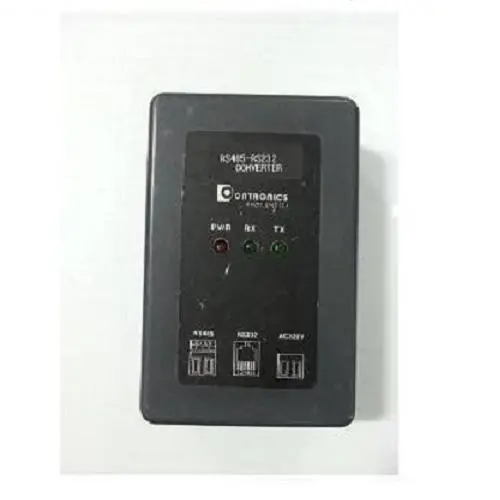

RS232/RS485 시그널 컨버터
상품상세정보
- Industrial grade strength
- Surge protected up to +/-15KV, 600W for RS485
- Fail-safe bias resistors
- DB9, RJ45 and screw terminal connectors in same converter
- Automatic Send Data Control
- Control LEDs for TX, RX and power
- Compatible with Modbus RTU/ASCII, BACnet
- Terminal board included
- 110/240VAC to 12VDC power supply included
- Serial RS-232 cable included (M/F)
Specifications
Interface RS232
|
DB9 female connector
|
Interface RS485
|
DB9 male, RJ45 and terminal board
|
Signals
| RS485, 2-wire, D+ and D- RS42, 4-wire, TX+, RX+, TX-, RX-
|
Power
|
Externally powered by 9 - 30VDC. 110/240VAC to 12VDC power supply is included
|
Current Consumption
|
less than 20mA
|
ESD protection
|
1500W / 600W/ms
|
Operating Temp.
|
-40°F to 180°F (-40°C to 85°C)
|
Operating humidity
|
5% To 95% - No Condensation
|
Standards
|
EIA/TIA RS-232C / RS485
|
Compliance
| CE, FCC, RoHS, ISO 9001 |
